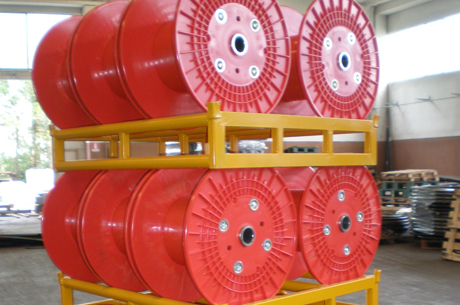

PTY Spool
Composite spool with flanges made of virgin ABS and barrel made of steel, suitable for stranding, braiding and high-speed extrusion process of insulated light cables (especially telephone cable and fiber optic cable). The flanges in ABS guarantee a good impact resistance and elasticity despite the very light structure.
/
PTY Spool
Composite spool with flanges made of virgin ABS and barrel made of steel, suitable for stranding, braiding and high-speed extrusion process of insulated light cables (especially telephone cable and fiber optic cable). The flanges in ABS guarantee a good impact resistance and elasticity despite the very light structure. Thanks to the presence of steel machined bushings and very light plastic flanges, made through high precision molds and machined before assembly, the structure of PTY assures good geometric values with respect to its axis of rotation and, as a consequence, a natural predisposition for winding cycles at high speeds (50 m/s). The assembly of the reels is carried out by means of screwed rods and galvanized self-locking nuts. The PTY are available with flange diameters 400, 500, 560 and 630 mm and with dimensions according to DIN 46395.
/
STANDARD
/
OPTIONS
special surface treatments as per customer specification (hot galvanization, electrolytic galvanization, polyurethane painting, primer, ecc…)
back
Barrel made of alternative materials (PVC, steel, etc.) as per customer requirements or specific application
back
/
GALLERY
