BAP Steel

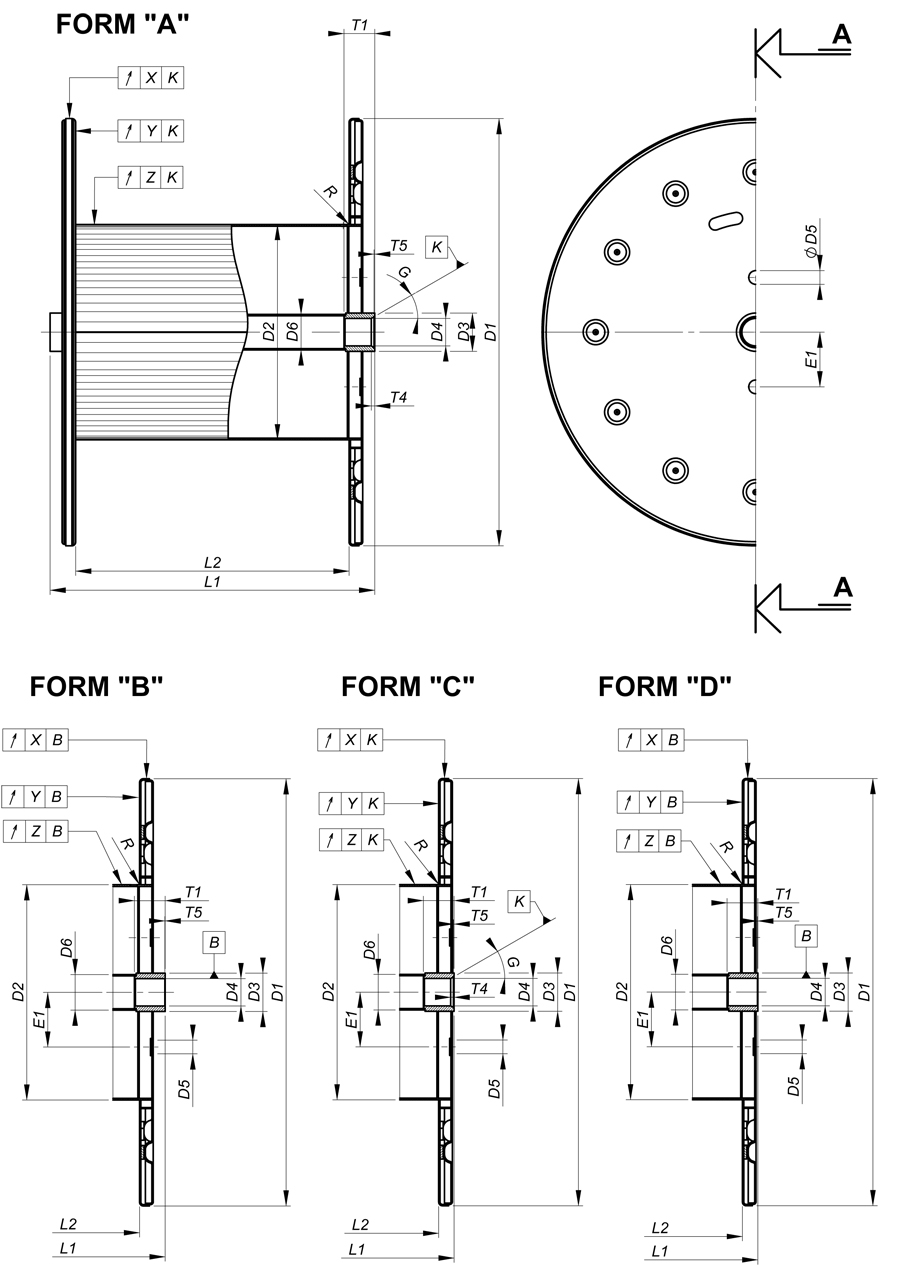

Double flange pressed steel reel for heavy duty applications available with dimensions as per DIN standards (46395-46397) or as per customer specification.
/
BAP Steel

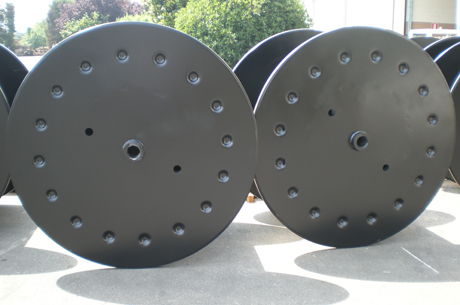

Double flange pressed steel reel for heavy duty applications available with dimensions as per DIN standards (46395-46397) or as per customer specification. It is suitable for any type of wires, insulated cables and strands and can be used for many applications, in particular extrusion and single.twist/double twist stranding.
Flanges are available with a minimum diameter of 600 mm up to a maximum diameter of 1600 mm. Within this range all sizes are available according to the specific request (dimensions in mm and inches).
The standard model is usually epoxy-painted on all surfaces, but other finishing treatments are available upon request.
/
STANDARD
/
OPTIONS
partial machining and dynamic balancing as per G16 ISO 1940 for high process speed (max 25-30 m/s)
back
Reinforcements under the flange rim to prevent deformation caused by the continuous use
back
special surface treatments as per customer requirement (polyurethane painting, primers, etc ...)
back/
GALLERY
