BFA Reel

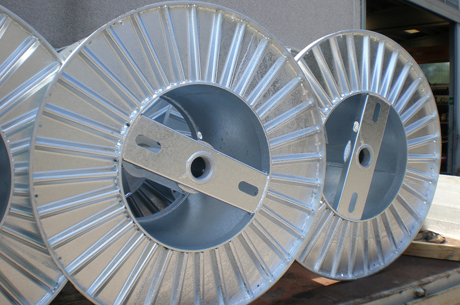

Structural steel reel provided with finned flanges and suitable for all types of cable, strands, ferrous and non ferrous wires.
/
BFA Reel

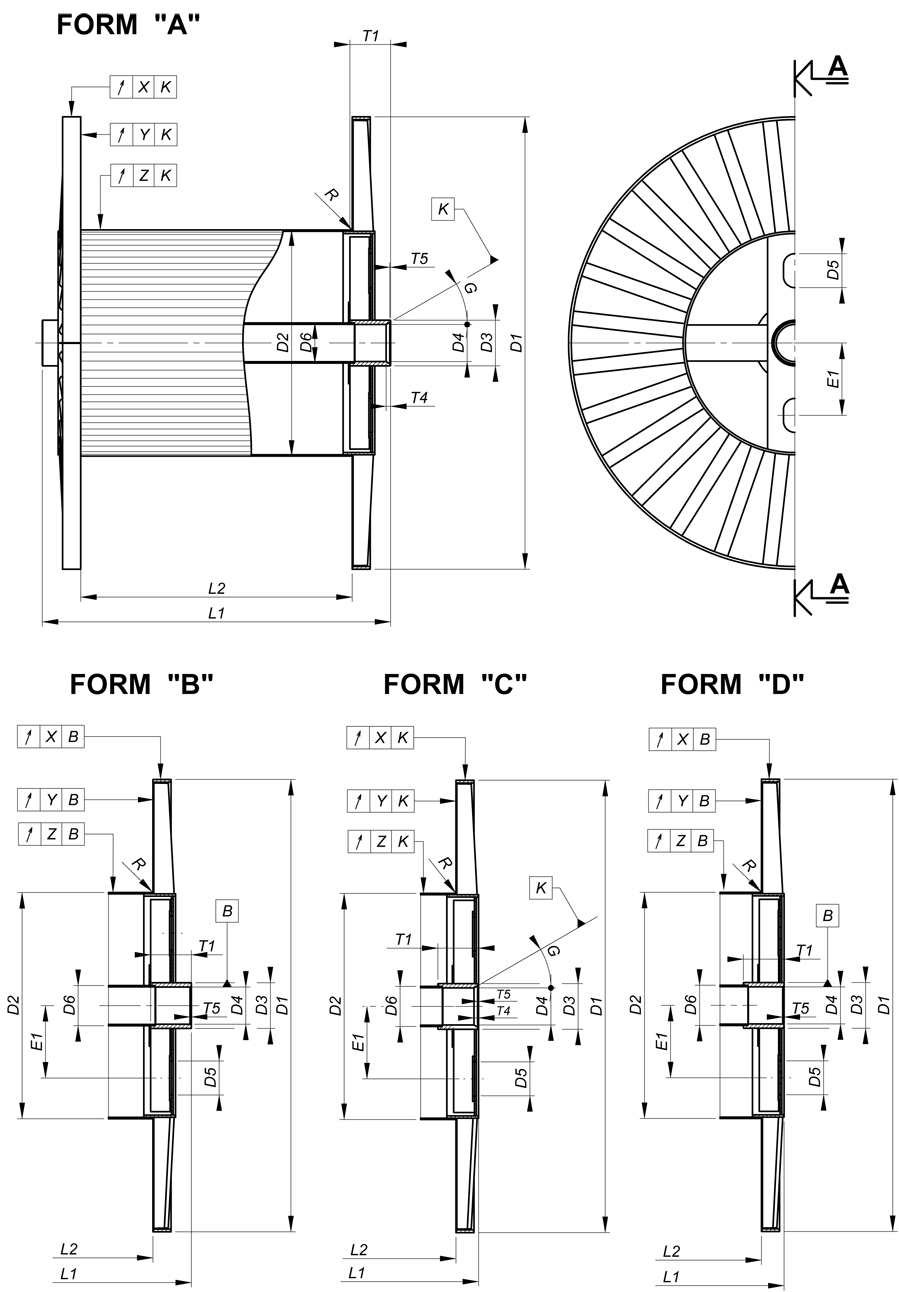

Structural steel reel provided with finned flanges and suitable for all types of cable, strands, ferrous and non ferrous wires.This kind of reel is suitable for many applications, in particular for the production of cables in annealing, stranding, bunching, armoring processes and for one-way/multiple shipping of the finished products. It is manufactured with dimensions according to DIN standards (46395/46397/46391) or to customer specification.
The reels BFA are available with flange diameter up to 4000 mm. The reinforcing ribs of the flanges can be either conical or cylindrical, depending on the specific request, and are rounded so as not to create sharp edges or roughness that can damage the wound material.
The standard model is made of steel and is epoxy-painted on all surfaces, but different types of materials or treatments are available depending on the customer requirements (stainless steel or hot galvanizing for oceaneering or immersion into tanks, polyurethane painting, tropicalization treatments for exposure to high temperatures or humid environments).
The reels are specifically designed according to the customer requirements, to the specific application and to the capacity requested. Upon request, FEA simulations (Finite Element Analysis) are also available to evaluate the design of reels for particular applications.
/
STANDARD
Structural reels with flanges provided with conical or cylindrical ribs (as per customer request) and central cross (the quantity of elements which compose the cross can vary depending on the dimensions and/or capacity)
back
Arbor provided with machined bushes (mainly for internal process or for high process speed)
back
/
OPTIONS
partial machining and dynamic balancing as per G16 ISO 1940 (up to diam 1600) for high process speed (max 20-25 m/s)
back
Application of one internal smooth flange to prevent damage on the wound material
back
Foldable flanges (wings) to reduce the overall dimensions of the empty drum
back
Removable/screwable flanges (wings) to reduce the overall dimensions of the empty drum
back
special surface treatments as per customer requirement (polyurethane painting, primer, hot galvanizing as per UNI EN ISO 1461, tropicalization, etc…).
back
/
GALLERY
